EYE — Documentation

OVERVIEW

Project

eye-simulator

Version

1.0.0

Globe Engine

CesiumJS 1.140

Backend

Express 5 / Node.js

Frontend Build

Vite 5 + vite-plugin-cesium

Orbital Math

satellite.js 5.0 (SGP4)

Test Framework

Vitest 2 + happy-dom

Module System

ESM throughout

EYE pulls live data from multiple public APIs and WebSocket streams, proxies them through a lightweight Express backend with in-memory caching, then renders everything as billboard collections and entities on a CesiumJS 3D globe.

The HUD overlay is pure DOM — positioned above the Cesium canvas via z-index — and reacts to camera movement, entity hover, and layer toggle events wired in main.js.

SCREENSHOTS

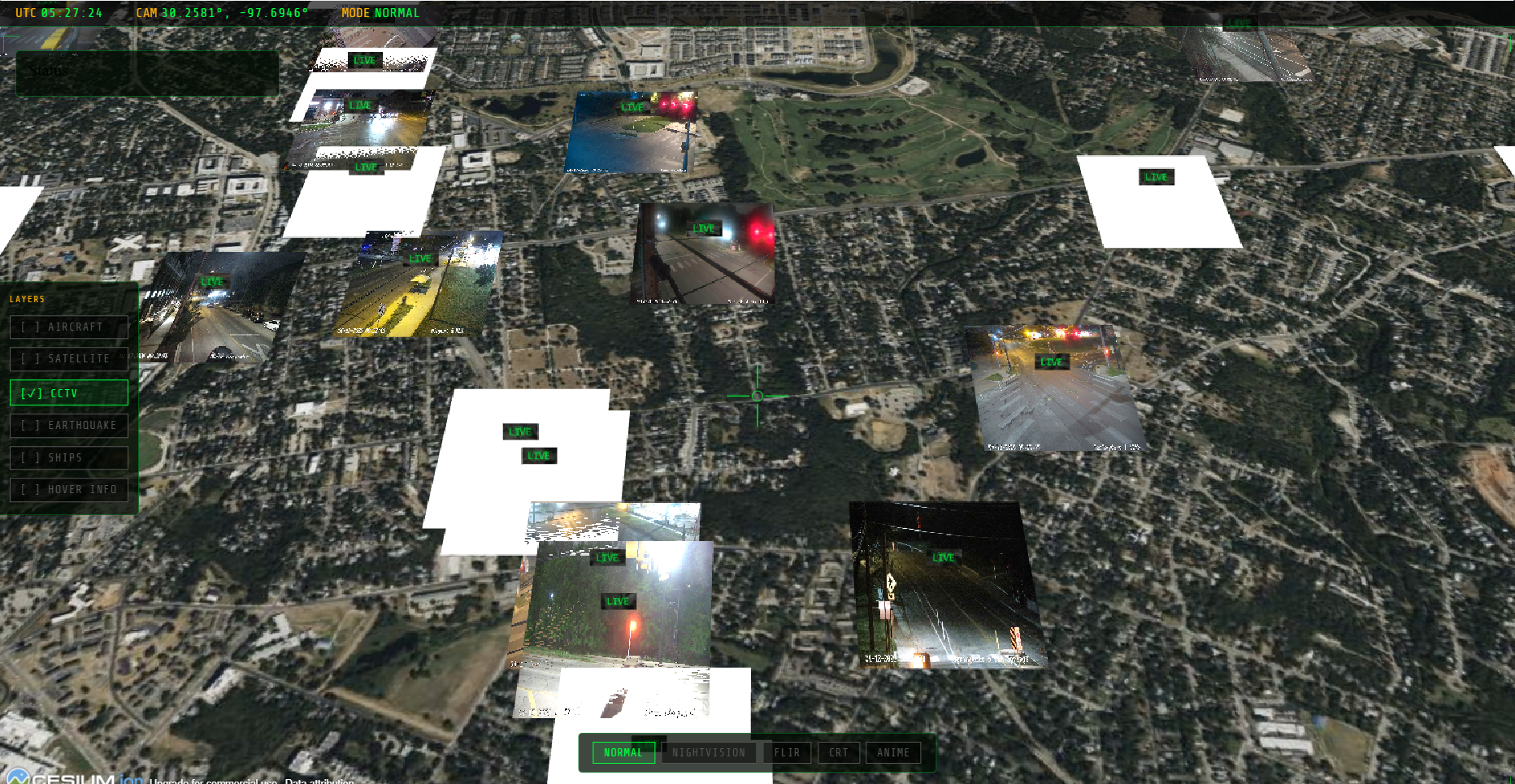

CCTV — NORMAL MODE...

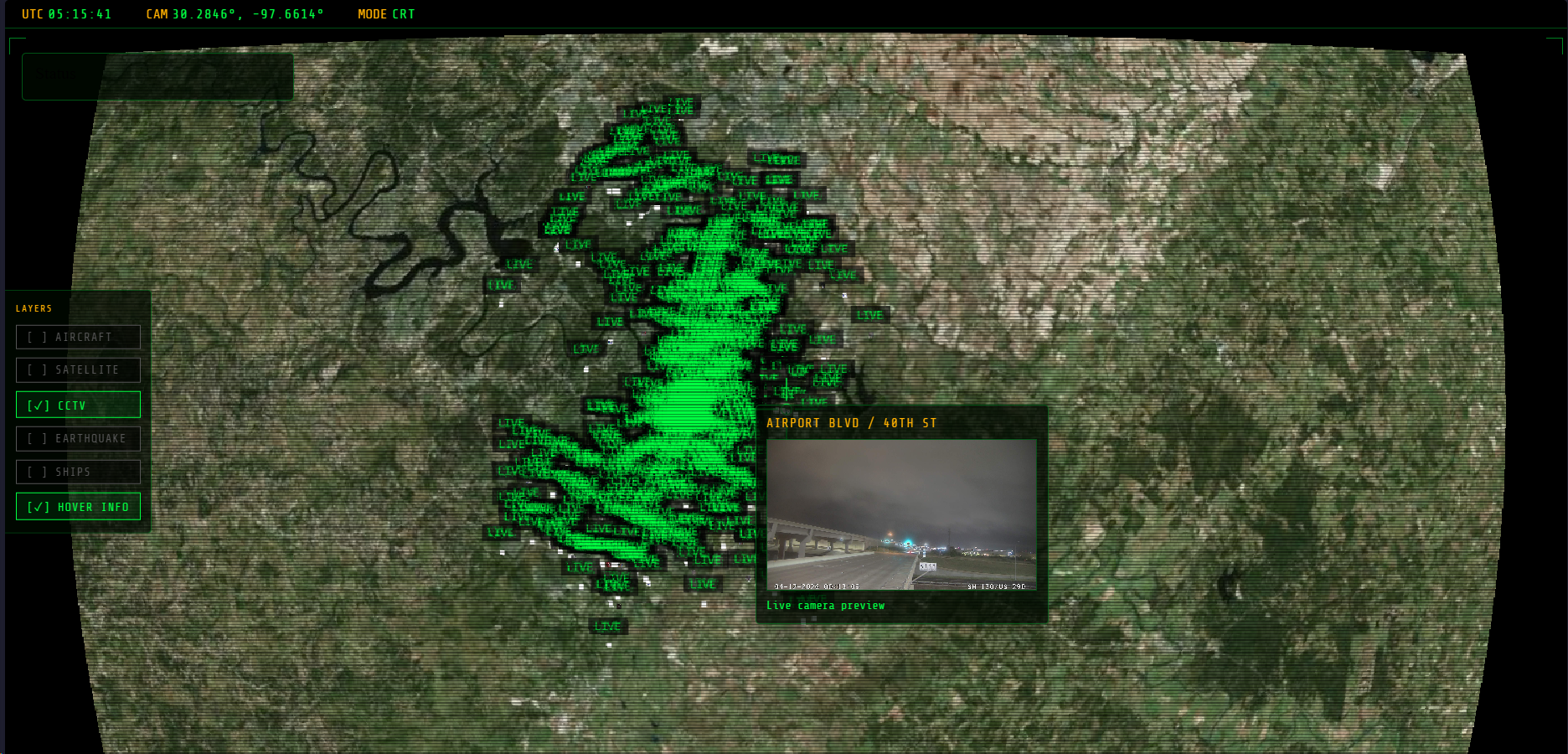

CCTV — CRT MODE...

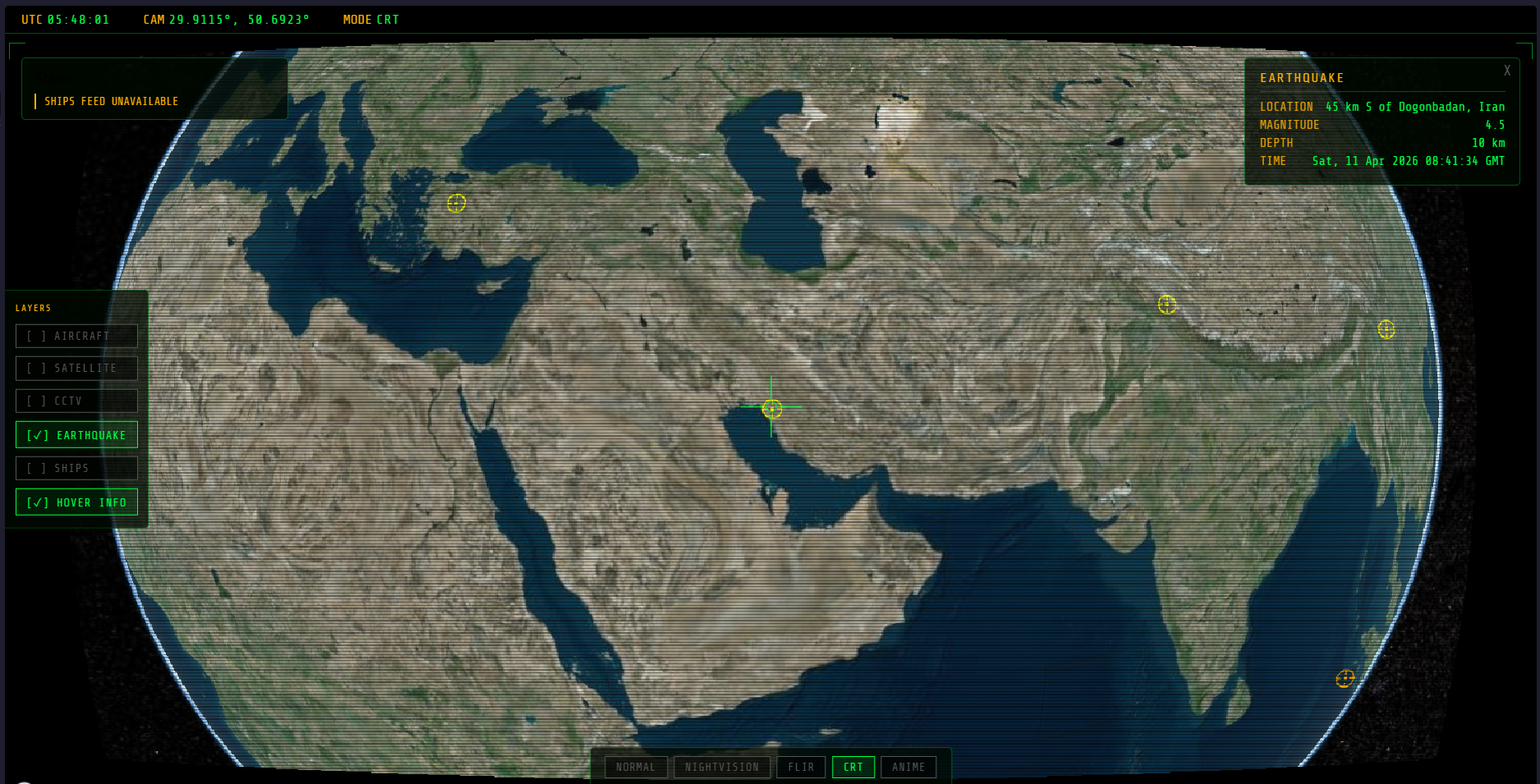

EARTHQUAKE LAYER — CRT MODE...

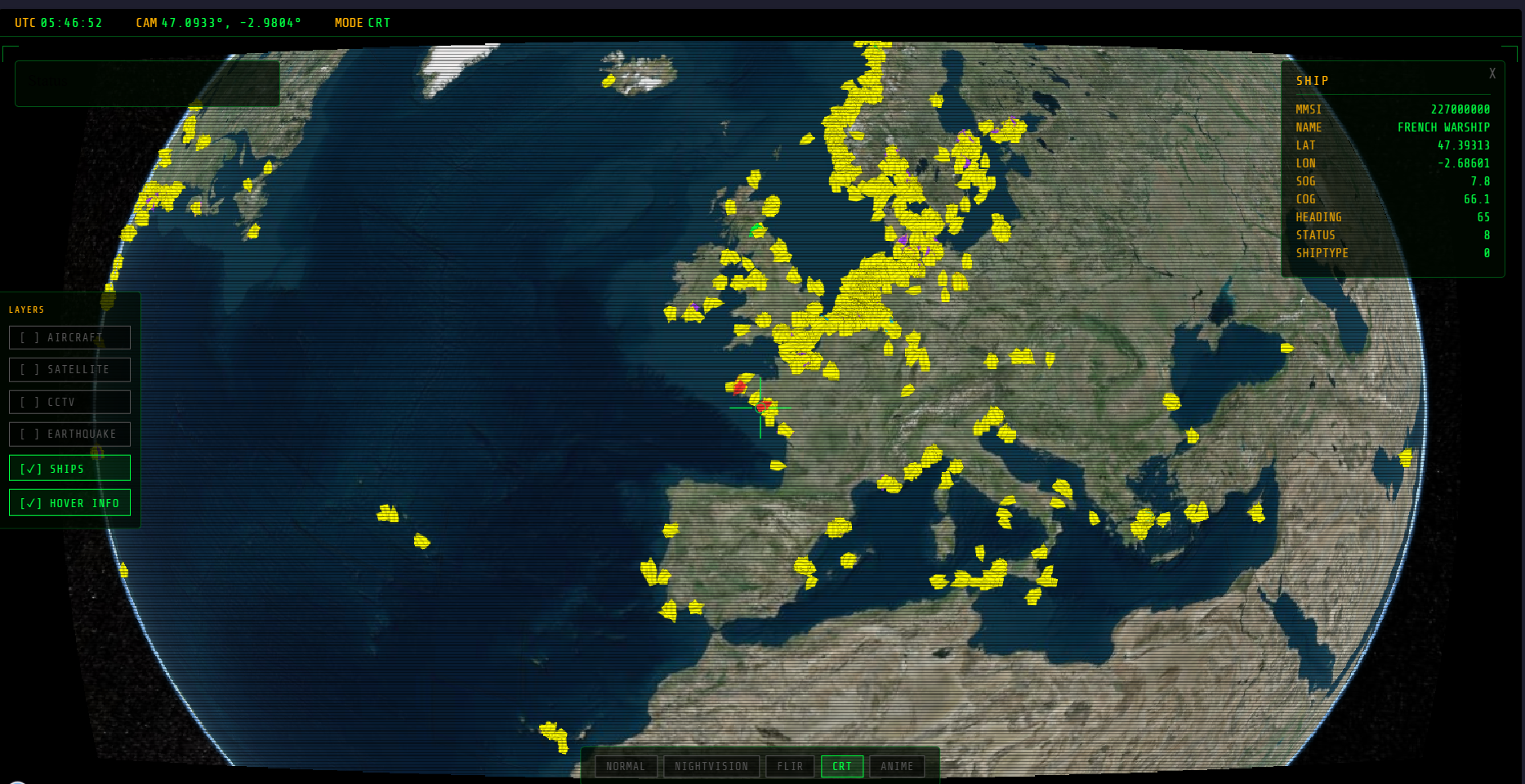

AIS SHIPS — CRT MODE...

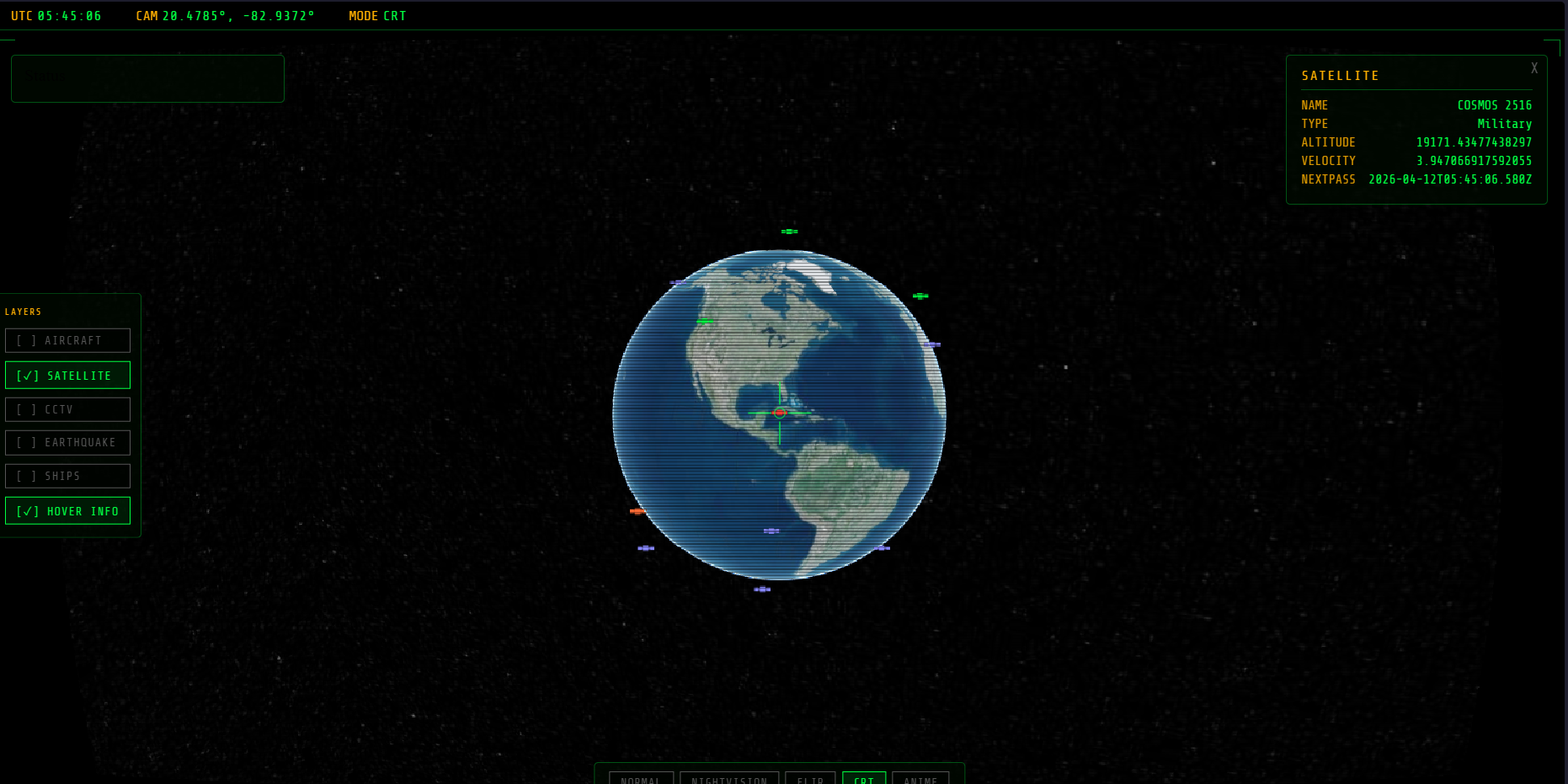

SATELLITE LAYER — CRT MODE...

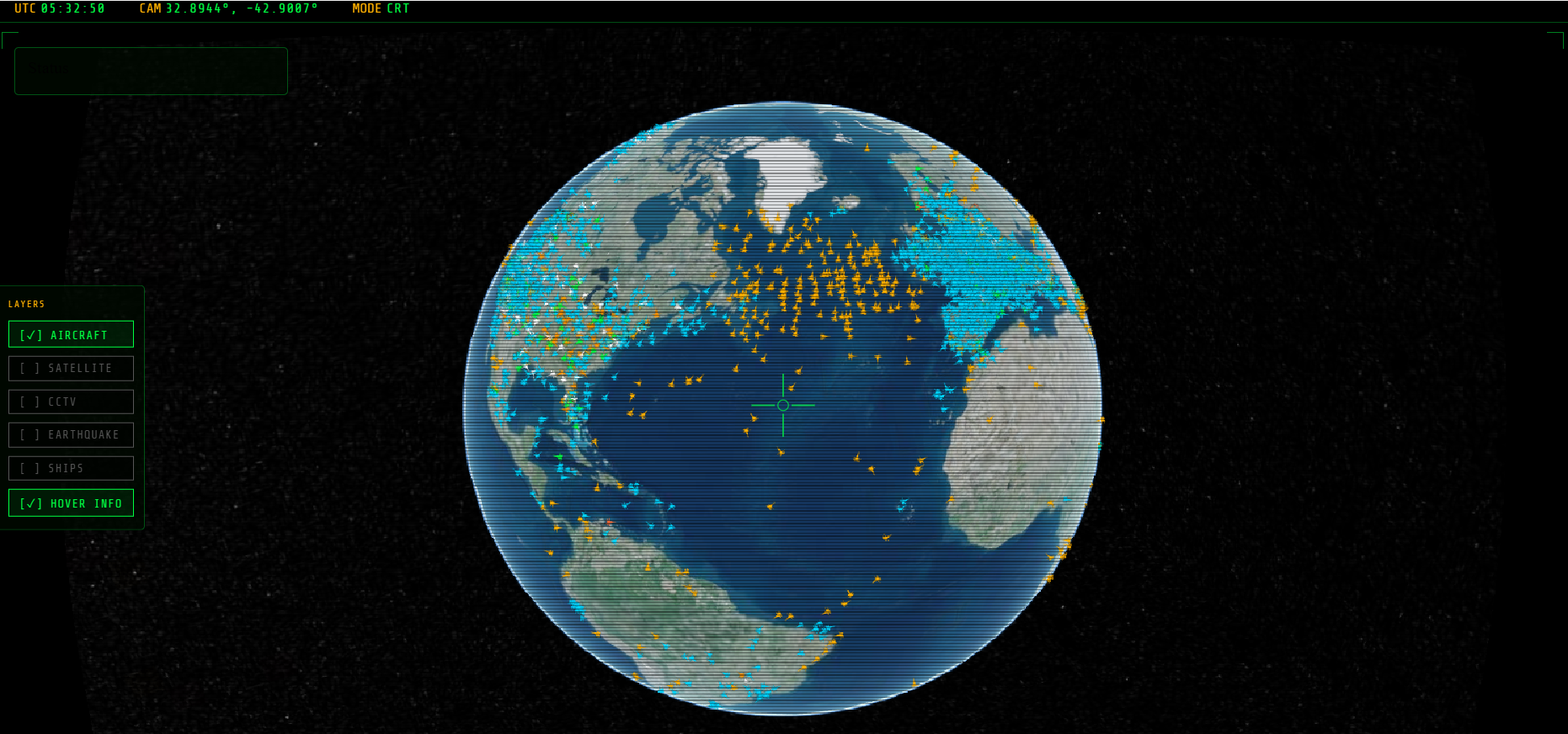

AIRCRAFT LAYER — CRT MODE...

DATA LAYERS

Each layer is an ES module class in layers/ with enable() / disable() lifecycle methods. All toggled via the HUD side panel.

✈ Aircraft

Live global ADS-B from adsb.one. Canvas-drawn plane sprites in a BillboardCollection. Dead-reckoning interpolates positions each frame. Refreshes every 10 s.

Source: api.adsb.one/v2 · Refresh: 10 s · layers/aircraft.js

🛰 Satellites

TLE catalog from CelesTrak. SGP4 propagation via satellite.js, updated every 3 frames. Click to show orbital path polyline + next pass time.

Source: celestrak.org · Cache: 2 hr · layers/satellites.js

📷 CCTV

Traffic cameras from TfL London, Austin TX, NSW AU, and Seattle WA. Image planes at <30 km; LIVE/OFFLINE dots from altitude. Hover previews live feed.

Sources: TfL · Austin · NSW · Seattle · Cache: 5 min · layers/cctv.js

🌍 Earthquakes

USGS all-day GeoJSON. Pulsing crosshair billboards sized by magnitude. Pulse animation via sine wave on preRender. Refreshes every 60 s.

Source: earthquake.usgs.gov · Refresh: 60 s · layers/earthquakes.js

🚢 Ships

AIS positions from AISStream WebSocket. Server connects in a 20-second burst collecting global PositionReport messages. Colored by AIS ship type code.

Source: stream.aisstream.io · Cache: 60 s · layers/ships.js

🖥 HUD

Pure DOM overlay above the Cesium canvas. UTC clock, camera coords, active shader mode, layer toggles, status panel, entity info panel, CCTV hover preview.

File: hud/hud.js · CSS: hud/hud.css

POST-PROCESS SHADERS

CesiumJS PostProcessStage GLSL fragments in shaders/, managed by postprocessor.js. One stage active at a time; Normal removes the active stage.

NORMAL

No post-processing. Raw Cesium output.

NIGHTVISION

Green phosphor palette, boosted contrast, procedural noise grain.

FLIR

Luminance → false-color thermal (blue cold / green / red hot).

CRT

Horizontal scanlines every 3 px + barrel distortion k=0.1.

ANIME

4-band luminance quantization + Sobel edge outlines.

PostProcessor API

postprocessor.js

import PostProcessor from './postprocessor.js';
const pp = new PostProcessor(viewer);
pp.setMode('CRT');       // activate shader
pp.setMode('Normal');    // remove active stage
pp.getActiveMode();    // → 'Normal' | 'NightVision' | 'FLIR' | 'CRT' | 'Anime'

BACKEND API

Express on port 3001. Vite proxies /api/* to it. All routes use node-cache to throttle upstream calls.

Method	Endpoint	Description	Cache	Upstream
GET	/api/aircraft	All aircraft globally filtered for lat/lon.	15 s	api.adsb.one
GET	/api/ships	20-second AIS burst — all collected vessels.	60 s	stream.aisstream.io
GET	/api/cctv	Merged cameras. Accepts `?country` & `?source`.	5 min	TfL/Austin/NSW/Seattle
GET	/api/cctv/image	CORS proxy for camera JPEGs. `?url=`	60 s	Camera image hosts
GET	/api/satellites	TLE 3-line catalog. `?group=active` default.	2 hr	celestrak.org
GET	/api/proxy	Generic CORS proxy. `?url=` — 5 s timeout.	—	Arbitrary

Camera Schema

GET /api/cctv

{ id: "tfl-00001.03777", name: "Trafalgar Square",
  source: "tfl", country: "GB", region: "London",
  latitude: 51.5080, longitude: -0.1281,
  imageUrl: "https://...", available: true }

Ship Schema

GET /api/ships

{ mmsi: "227000000", name: "FRENCH WARSHIP",
  lat: 47.393, lon: -2.686, sog: 7.8, cog: 66.1,
  heading: 65, status: 0, shipType: 35 }

ARCHITECTURE

adsb.one API──→Express /api/aircraft──→AircraftLayer──→BillboardCollection

AISStream WS──→Express /api/ships──→ShipLayer──→BillboardCollection

CelesTrak TLE──→Express /api/satellites──→SatelliteLayer + SGP4──→BillboardCollection

TfL/Austin/NSW/SEA──→Express /api/cctv──→CCTVLayer──→Rectangle Entities

USGS GeoJSON──→Direct (browser)──→EarthquakeLayer──→BillboardCollection

CesiumJS Viewer──→PostProcessor──→GLSL PostProcessStage

All Layers──→wireApplication()──→HUD DOM Events

BillboardCollection vs Entity API: Aircraft, ships, satellites, and earthquakes use raw BillboardCollection for GPU-batched rendering. Only CCTV uses the Entity API because camera planes need per-entity distance display conditions.

Dead Reckoning: Aircraft and ships interpolate position each frame using last-known heading × speed × elapsed time, keeping motion smooth despite infrequent API calls.

AIS burst pattern: The ship route blocks for 20 s on first request collecting as many global position reports as possible, then caches for 60 s.

SETUP

Requires Node.js ≥ 20.19.0 (CesiumJS engine requirement).

Clone & Install
Install root (frontend) and server packages separately.

terminal

git clone https://github.com/DevwithAnTic/eye.git
cd eye && npm install
cd server && npm install && cd ..

Environment Variables
Create server/.env with the keys below.

Variable	Required	Description
VITE_CESIUM_ION_TOKEN	OPTIONAL	Cesium Ion token. Falls back to OSM imagery without it.
AISSTREAM_KEY	OPTIONAL	AISStream.io API key. Free tier at aisstream.io.
NSW_TRANSPORT_API_KEY	OPTIONAL	NSW Transport key for Australian CCTV cameras.

Run Development
Starts Vite (port 5173) + Express (port 3001) concurrently.
